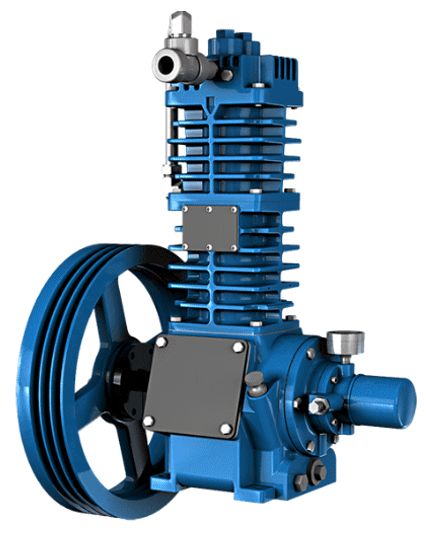

Reciprocating Gas Compressors

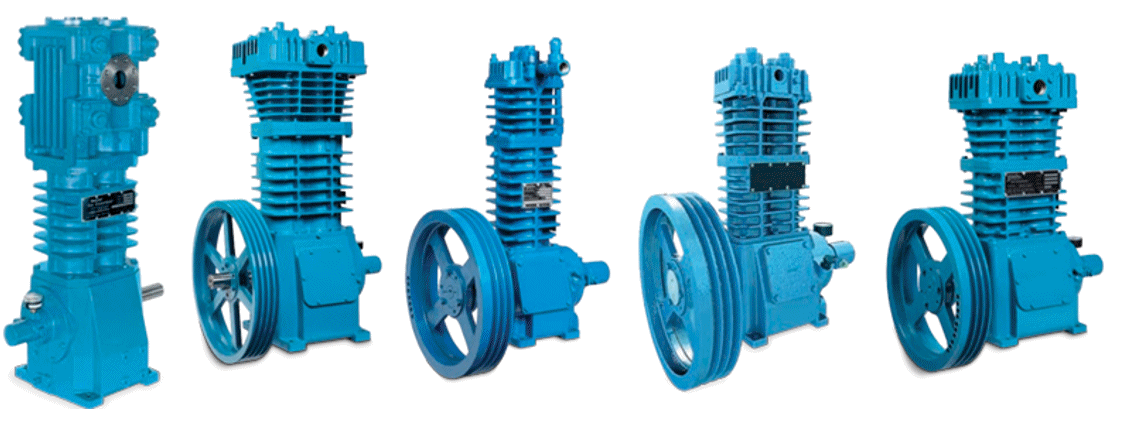

Blackmer NG series
BLACKMER NG Compressors - Natural Gas Compressors

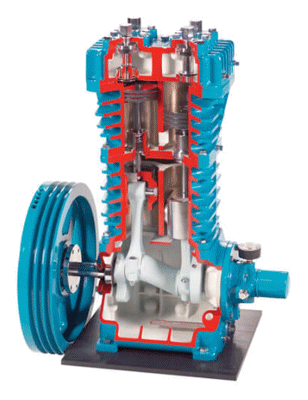

Specially designed for the oilfield, the BLACKMER NG Series Reciprocating Gas Compressors have proven themselves over and over as dependable and robust equipment for oil and natural gas production, vapor recovery and storage operations. These oil-free reciprocating gas compressors are constructed and equipped with superior components, which help provide maximum performance and reliability under the most severe service conditions. BLACKMER NG Series Reciprocating Gas Compressors are highly efficient, heavy duty single- and two-stage oil-free compressors. Each BLACKMER NG Series Compressor is constructed with a single distance piece between two sets of seals on each piston rod. The distance piece provides leakage control and prevents oil contamination of the compressed gas stream. Ports are provided in the distance piece chamber for purging, pressurizing or venting. This enables NG Series Compressors to be utilized in a wide range of wellhead applications for oil-and-gas production and storage operations. Additionally, NGS Series Sour Gas compressors can handle liquefied gases with up to 8% dry hydrogen sulfide (H2S) content
Applications
- Wellhead Annulus Gas Pressure Reduction
- Gas Gathering
- Wellhead Vapor Control
- Gas Evacuation
- Pressure Boosting 2
- Gas Blanketing
- Tank Battery Vapor Control and Recovery
- Flare Elimination
- Vapor Recovery
- Enhanced Recovery
Blackmer NG Compressors | Standard Features
All Blackmer NG Compressor models feature an oil-free design and high-efficiency valves engineered for superior sealing, performance, and durability.
These compressors deliver exceptional reliability and energy efficiency, making them ideally suited for the most demanding oilfield and wellhead applications.
Other standard features include:
Key Features of Blackmer NG Compressors:
Specific features of the NG Series Compressors include:
Wherever wellhead gases need to be efficiently managed, Blackmer NG Series Gas Compressors are the most preferred choice
Trusted Reliability Backed by Decades of Industry Expertise
With decades of proven experience in the oil and gas industry, Blackmer has built a strong reputation for product innovation, superior quality, and—most importantly to Wellhead Operators—unmatched reliability. Designed to perform in the most rugged and remote unmanned locations, Blackmer NG Gas Compressors are trusted by professionals to deliver consistent, failure-free operation at the wellhead and storage tank batteries across a wide range of critical applications.
Annulus Reduction
Blackmer NG Compressors have different options, like to reduce wellhead gas pressure improving oil flow into underground tanks for more cost-effective oil production enhancement.
Vapor Control

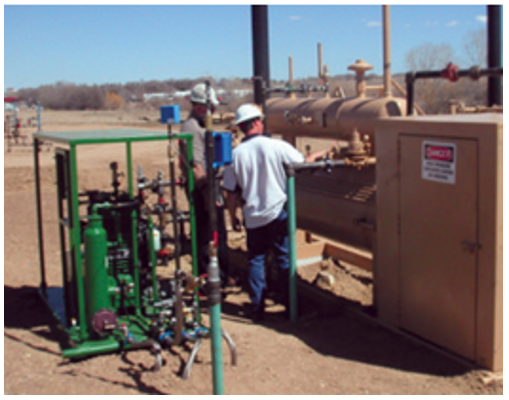

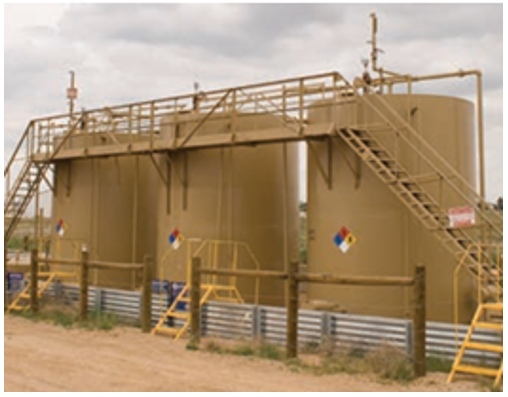

The wellhead and tank batteries are the two major sources of fugitive methane emissions. Common air compressors lack critical seals to prevent gas leakage and crankcase oil dilution. Condensate can form in the compressor, which will contaminate crankcase oil. Condensate will break down the oil acting like a solvent, stripping bearings of critical lubrication. The result is damaging heat, friction, and equipment damage or breakdown. Blackmer NG Compressors are specially designed to capture and control wellhead gases. The design prevents gas leakage and oil contamination.

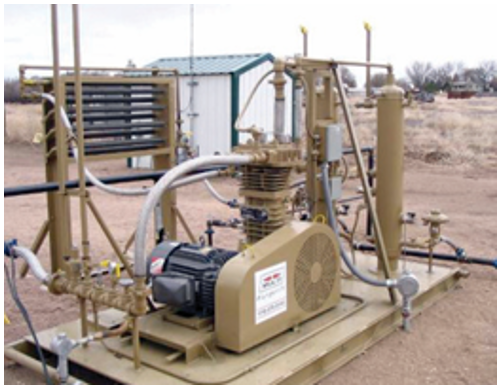

Vapor Recovery
Increasingly stringent state and federal clean air rules are promoting the reduction and elimination of gas venting and flaring of fugitive gas emissions. Blackmer NG Compressors are unsurpassed in reducing emissions and the recovery of saleable wellhead gas, thus protecting the environment, supporting regulatory compliance and improving the bottom line

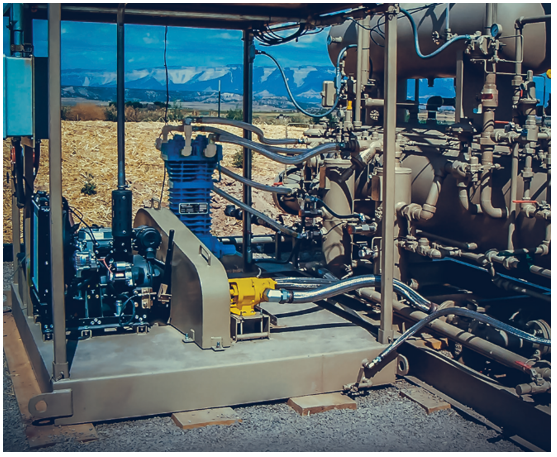

Product Transfer
Blackmer NG Compressors move wellhead and tank battery vapors into low to medium pressure pipelines where it can be further processed downstream at a gas processing station. Wellhead operators attest to the importance of equipment reliability and uptime performance, and understand the risks and downtime costs of relying upon less capable, less durable air compressors. They avoid the unnecessary expense of daily and weekly oil changes, and the frequent replacement of these less durable compressors. They recognize the Blackmer product outlasts and outperforms, requiring only routine maintenance. Its ability to remain on 24/7/365 continuous duty for the long haul is testimony to Blackmer reliability and bottom line results.
Blackmer NG Compressors | Specifications

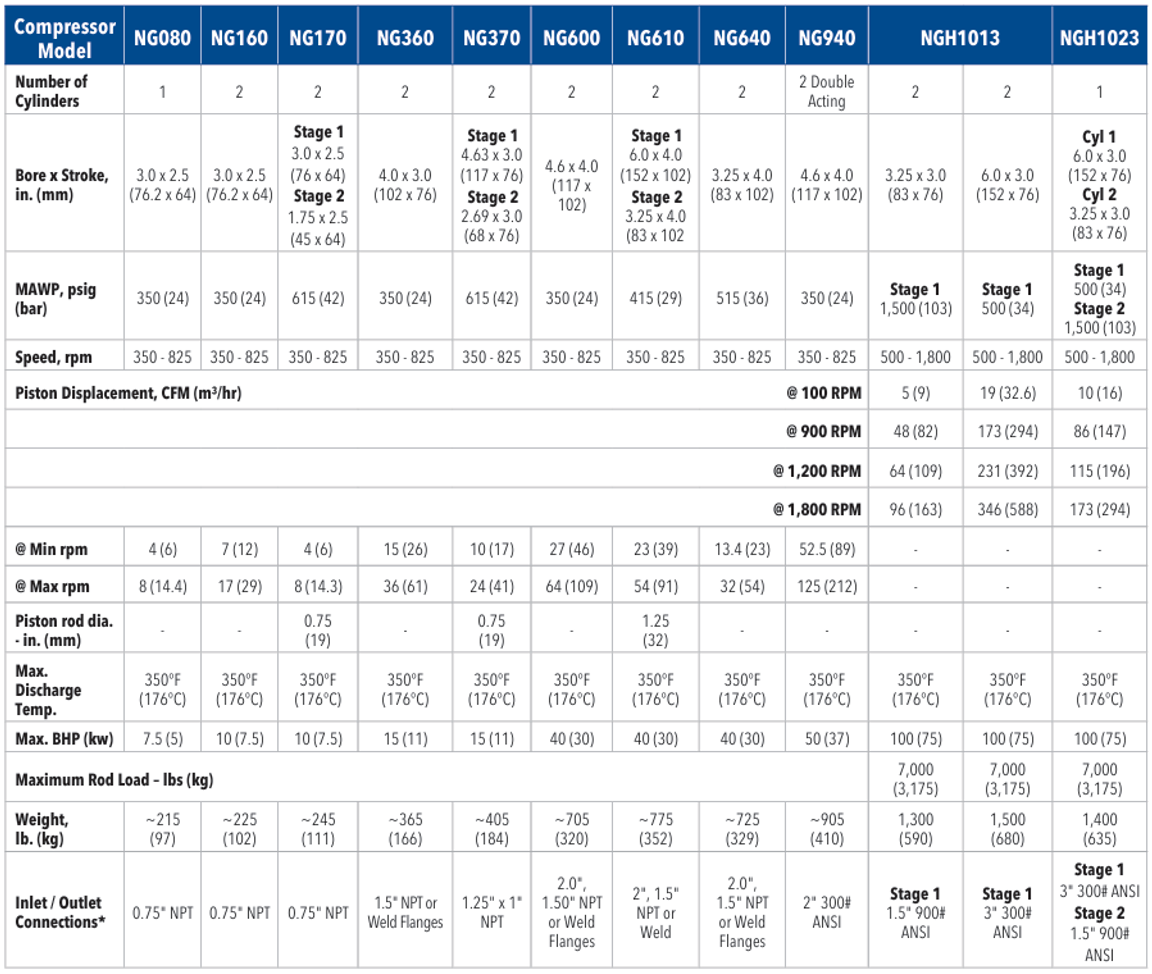

Compressor Selection Guidance
To choose the NG Series Compressor that best meets your specific application requirements, refer to the provided selection charts. Please note that actual performance may vary based on line restrictions, as well as the size and length of the piping used. Horsepower requirements for both liquid transfer and vapor recovery applications are calculated under moderate climatic conditions and may need adjustment for more extreme environments.
The BLACKMER NG080 Series Gas Compressors offer a flow rate of 14.35 m3/hr at a maximum rpm of 5.0 kW. This single-cylinder, single stage compressors offers two models: BLACKMER NG082 for natural gas and BLACKMER NGS082 for sour gases of up to 8% dry H2S content.

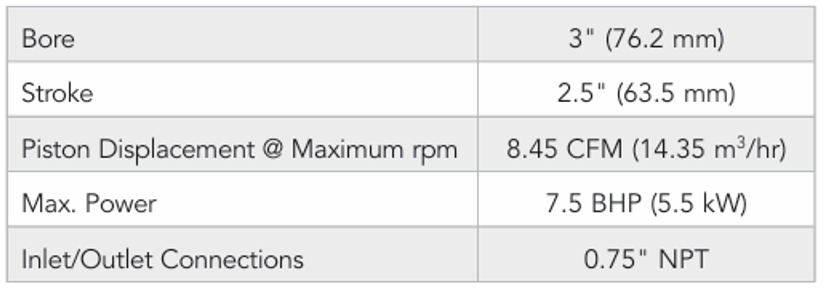

BLACKMER NG080 Series Technical Data sheet:
- With flow rates up to 28.7 m³/hr at maximum RPM
- the two-cylinder version
- single-stage BLACKMER NG160 Series Gas Compressors
- available in two different models
- the BLACKMER NG162 for natural gas and the BLACKMER NGS162 for sour gases of up to 8% dry H2S content.

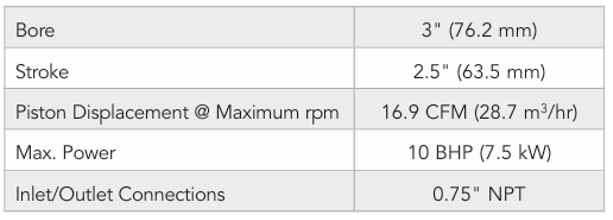

BLACKMER NG160 Series Technical Data:
The BLACKMER NG170 Series two-stage reciprocating gas compressors feature flow rates of 14.3 m³/hr at maximum rpm. The compressors feature a two-cylinder design and are available in an BLACKMER NG172 model for natural gas and the BLACKMER NGS172 model for sour gases of up to 8% dry H2S content.

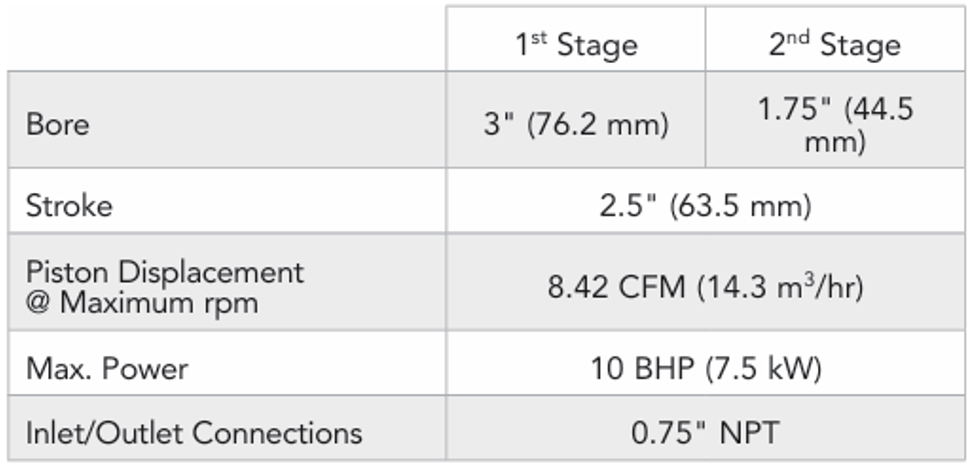

BLACKMER NG170 Series Technical Data:
The Blackmer NG370 Series
- two-stage reciprocating gas compressors
- flow rates up to 40.8 m³/hr at maximum RPM.
- a two-cylinder design
- are available in the BLACKMER NG372 model for natural gas and the BLACKMER NGS372 model for sour gases of up to 8% dry H2S content.

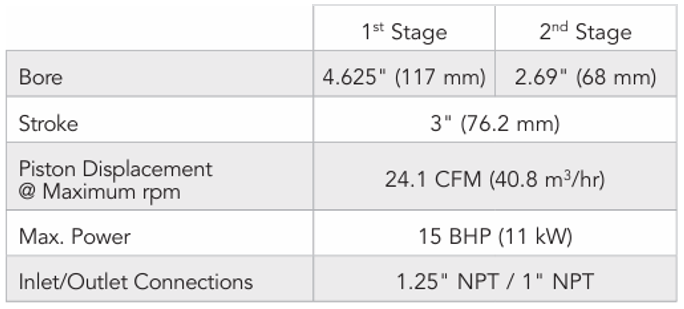

BLACKMER NG370 Series Technical Data:
- The two-cylinder, single-stage BLACKMER NG600 Series
- Gas Compressors are available in two different models
- the BLACKMER NG602 for natural gas and the BLACKMER NGS602 for sour gases of up to 8% dry H2S content.
- The BLACKMER NG600 Series Gas Compressors have flow rates up to 109 m³/hr at maximum RPM.

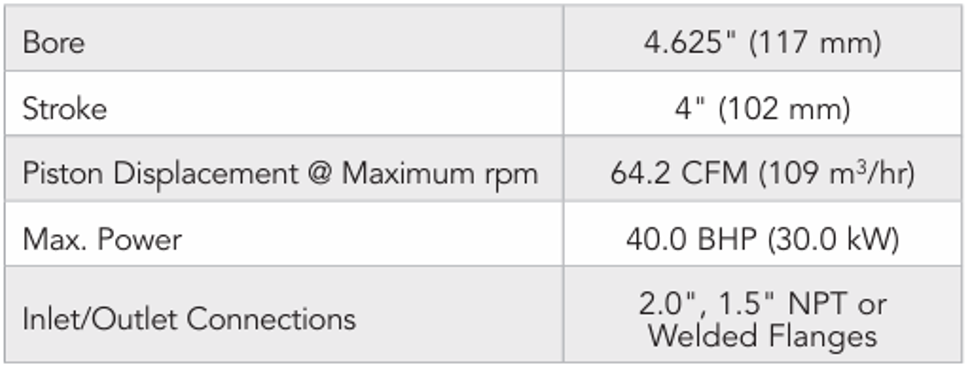

BLACKMER NG600 Series Technical Data:
- The Blackmer NG610 Series two-stage reciprocating gas compressors
- offer flow rates up to 91.2 m³/hr at maximum rpm.
- Offering a two-cylinder designs,
- the BLACKMER NG610 Series compressors and BLACKMER NG612 model for natural gas and an BLACKMER NGS612 model for sour gases of up to 8% dry H2S content.

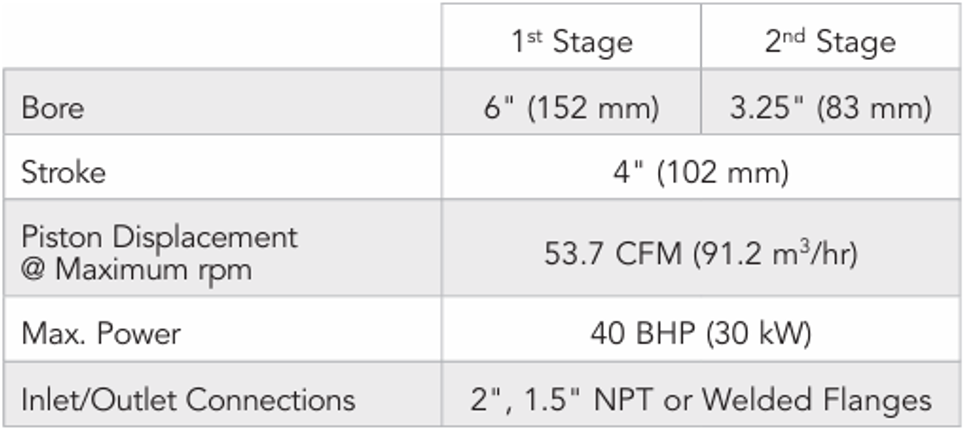

BLACKMER NG610 Series Technical Data:
- With flow rates up to 53.8 m³/hr at maximum RPM
- the two-cylinder, single-stage BLACKMER NG640 Series Gas Compressors
- available in two different models
- the BLACKMER NG642 for natural gas and the BLACKMER NGS642 for sour gases of up to 8% dry H2S content.

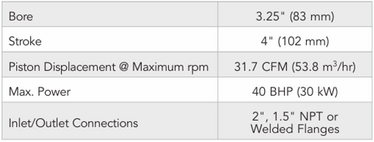

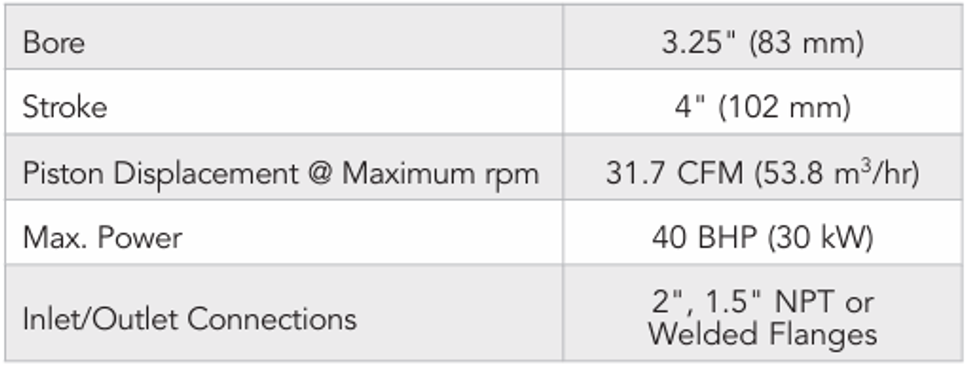

BLACKMER NG640 Series Technical Data:
The BLACKMER NG940 Series is the largest Blackmer NG Reciprocating Gas Compressors available with flow rates of 212 m³/hr at maximum rpm. These single-stage, double acting two-cylinder gas compressors are available in two different models, the BLACKMER NG942 for natural gas and the BLACKMER NGS942 for sour gases of up to 8% dry H2S content.

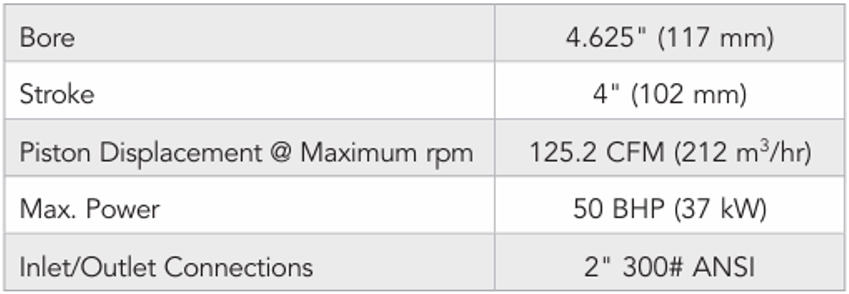

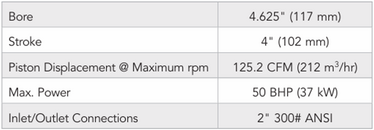

BLACKMER NG940 Series Technical Data:

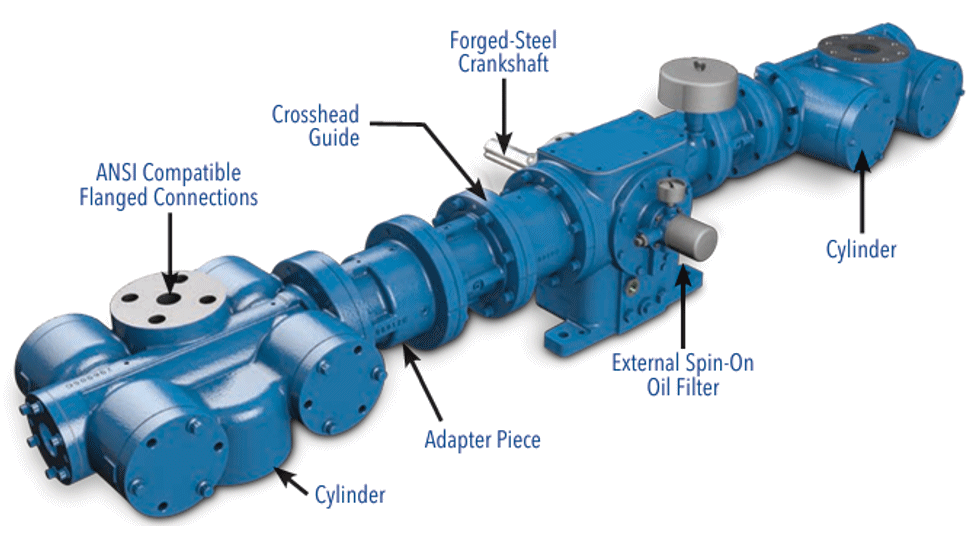

The Blackmer NGH100 Series Reciprocating Gas Compressor is a 100-BHP rated horizontal compressor unit that has been developed for use in vapor-recovery, wellhead-transfer and artificial-lift applications in the upstream oil-and-gas market. It is compatible with sour gas up with up to 8% dry hydrogen sulfide (H2S) content. The BLACKMER NGH100 comes in a two-cylinder, single-stage NGH1013 model, which has a flow rate up to 588 m³/hr at 1,800 rpm, and the BLACKMER NGH1023 model, which is a two-stage, one-cylinder model with flow rate of 172.9 294 m³/hr at 1,800 rpm.

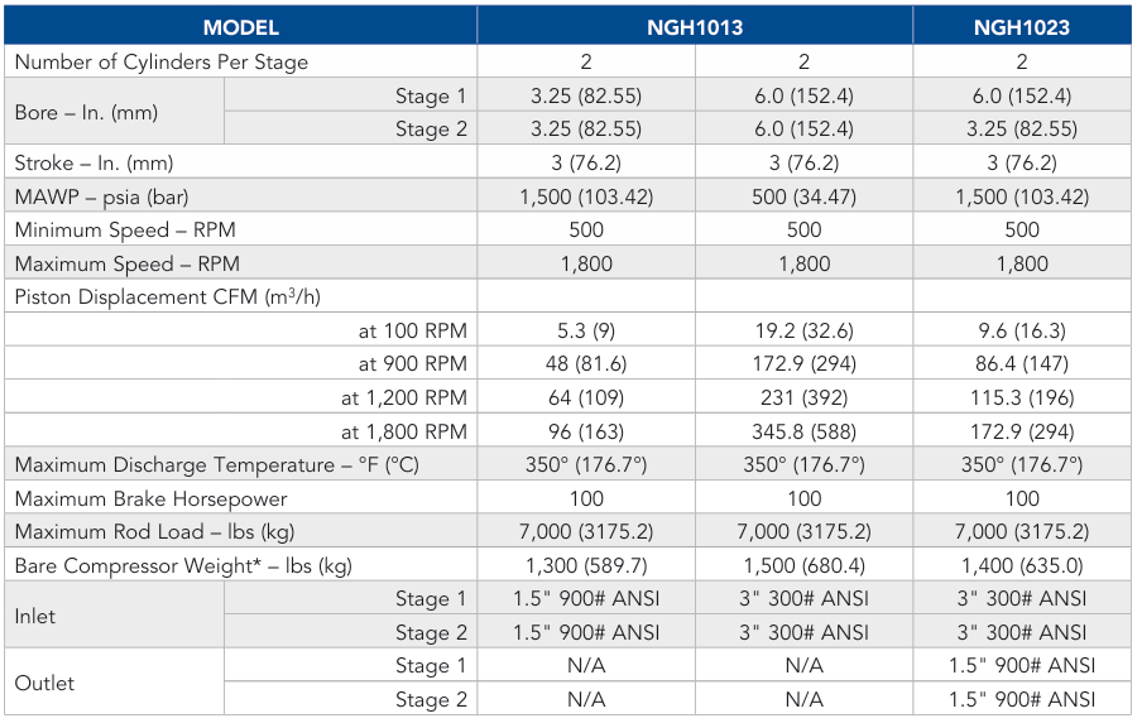

BLACKMER NGH100 Series Technical Data:
